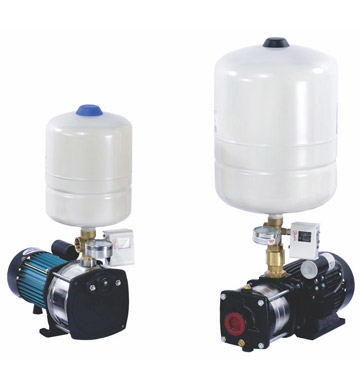

Pressure Booster Pumps (ADBS Series)
Domestic Pressure Booster System delivers water with uniform and constant pressure in all Outlets – showers, taps, etc both on ground floor as well as top floor of the buildings. The Pressure switch monitors the pressure in the system and it will switch the pumpset ON and OFF automatically based on demand. The system is supplied with Horizontal Multistage Stainless Steel Pumps (AHS Series) or Shallow Well Jet Pumps (TSJ Series). The system consists of high quality pressure tank, pressure switch and other accessories.
Range
| PARTICULARS | DETAILS |
| Power Input Range | 0.37 kW to 1.5 kW |
| Power supply | Single phase 230 V, 50 Hz AC supply |
| Motor | Capacitor run motor, TEFC type |
| Speed | 2900 RPM |
| Degree of Protection | IP 54 |
| Class of Insulation | ‘F’ Class |
| Flow rate | upto 7.5 m3/hr |
| Head | upto 72 m |
| Liquid temperature | Maximum 55º C |
| Suction lift | Maximum 7 m |
| Operating pressure | Maximum 7 Bar |
Application
- Domestic Pressure Boosting applications
- Pressure Boosting Applications Multistory Buildings, Residential Apartments, Hotels etc
- Lawn sprinklers, Fountains and Small Farm irrigation.

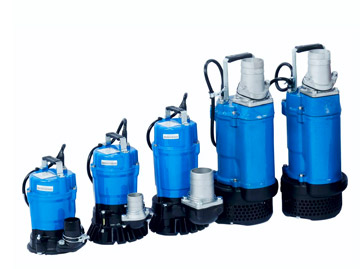

Submersible Dewatering Pumps
(ADP Series)
Driven by dry type submersible motors, drainage pumps are virtual workhorses that can take on the toughest chores. Ideal for draining flooded basements and storm water drains as well as other high discharge applications.
Single phase submersible dewatering pumps (CDS/CRDS)
CDS pumps have the unique characteristic of draining water down to the very bottom. Ideal for cleaning underground sumps, over head tanks, and draining curing water from concrete floors at construction sites with minimal effort.

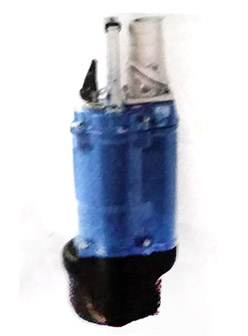

Three phase submersible dewatering pumps (CDT)
CDT high performance construction dewatering pumps can take on the toughest construction sites by virtue of their rugged cast iron construction and superior design. Perfect pumps for highly abrasive sand and silt laden water at construction sites.
Applications
- Draining and laden water in construction and civil engineering sites.
- Dewatering mines.
- Commercial and industrial waste water drainage.
- Effluent water transfer.

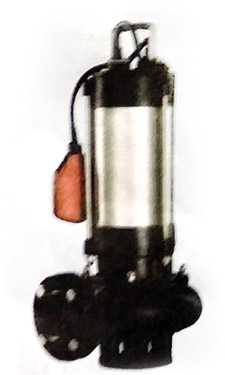

Light Duty Submersible Dewatering Pumps (ESWP Series)
| PARTICULARS | DETAILS |
| Power | 0.5 HP to 1.5 HP 1 Phase 0.5 HP to 3.0 HP 3 Phase |
| Head Range | Upto 15m |
| Discharge Range | Upto 40m3/hr |
| Solid handling size | 15mm to 40mm |
Applications
- Pumping sewage water from septic tanks.
- Handling cow dung slurry at dairy farms.
Heavy Duty Submersible Dewatering Pumps (ASWP Series)
| PARTICULARS | DETAILS |
| Power | 1.5 HP to 10.0 HP 3 Phase |
| Head Range | Upto 40m |
| Discharge Range | Upto 100m3/hr |
| Solid handling size | 20mm to 55mm |
Applications
- Pumping sewage water from septic tanks, cesspitsand sewage treatments plants.
- Pumping industrial waste water.

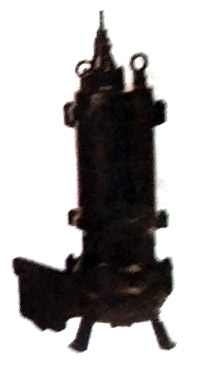

Submersible Sewage Pumps with Cutter (TSP C Series)
| PARTICULARS | DETAILS |
| Power | 1.0 HP to 15.0 HP |
| Head Range | Upto 39m |
| Discharge Range | Upto 84m3/hr |
Applications
- Handling raw sewage, waste water and heavy duty industrial applications, where the pump is subject to clogging from oversized materials.
Vertical Multistage Inline Pumpsets (AV,AVI,AVN, AVS)
Vertical Multistage High Pressure Centrifugal In-line pumps (AV, AVI, AVS & AVN Series) are non self priming pumps of In-line Design. Flange or with victualic coupling with equally sized suction and discharge ports. Stage construction with Stainless Steel impellers, diffusers and outer tube, Pump shaft and Motor shaft are of lEC Standards. All wetted parts of pump are made of high grade corrosion resistant stainless steel.These Pumps are driven by Totally Enclosed Fan Cooled (TEFC) high efficiency AC Induction motors.
Vertical Multistage Offline Pumpsets
High pressure vertical multistage pumpsets are reliable and rugged construction. They have proven their performance over many decades. A wide variety is available to suit high pressure applications.

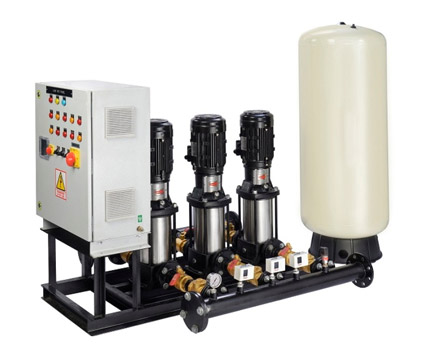

Hydro Pneumatic Syatems (APS Series)
APS series Hydropneumatic System is designed to deliver water continuously at all outlets in all Floors of High Rise Apartments and Commercial Buildings with uniform pressure .The system is most ideal for High Rise Apartments and Buildings where the demand of water is variable and fitted with modern bathroom fittings like Jacuzzis, shower etc which require pressurized water for better functioning of the fittings.
Hydropneumatic system consists of 2 to 6 High pressure multistage centrifugal pumpsets, Suction and Delivery manifolds with Valves, Base frame and suitable control panel. The system is pre assembled, tested in the factory and ready for installation at site. Control panel controls the number of pumpsets to operate based on system discharge and pressure rate. Pressure tanks are connected to the delivery manifold to reduce the number of starts and stop of pumpsets. The system consists of High Quality Pressure Switches, Pressure Transmitter, Pressure Tank and other Accessories.
APS Hydropneumatic system are supplied with Variable speed and also Constant Speed Controller Panel.
| PARTICULARS | DETAILS |
| Power | 0.5 HP to 2.0 HP 1 Phase 0.5 HP to 100.0 HP 3 Phase |
| Head Range | Upto 320m |
| Discharge Range | Upto 150m3/hr |
| Liquid Temperature | 15oC to 120oC |
| Operating Pressure | Upto 30bar |
Applications
- Pressure Boosting water in High rise Apartments,High rise Commercial Buildings and Row Houses in Housing Projects.
- Pressurized Water Supply in Hotels, Hospitals and Hostels.
- Sprinkler Irrigation of Golf Courses, Sports Fields and Large Farms.
